สถานที่กำเนิด:
Hengshui, Hebei, จีน
ชื่อแบรนด์:
Heng Yuan
ได้รับการรับรอง:
ISO9000
หมายเลขรุ่น:
6-5/8 "
ติดต่อเรา
| Attribute | Value |
|---|---|
| Name | Johnson VEE-WIRE Water Well Screen Pipe |
| Material | Stainless Steel 304L |
| Diameter | 168mm |
| Length | 5850mm |
| Slot size | 0.5mm |
| Wrap wire | 3×4.6mm |
| Support rod | ø6.8mm |
| NO. of rod | 32NOS |

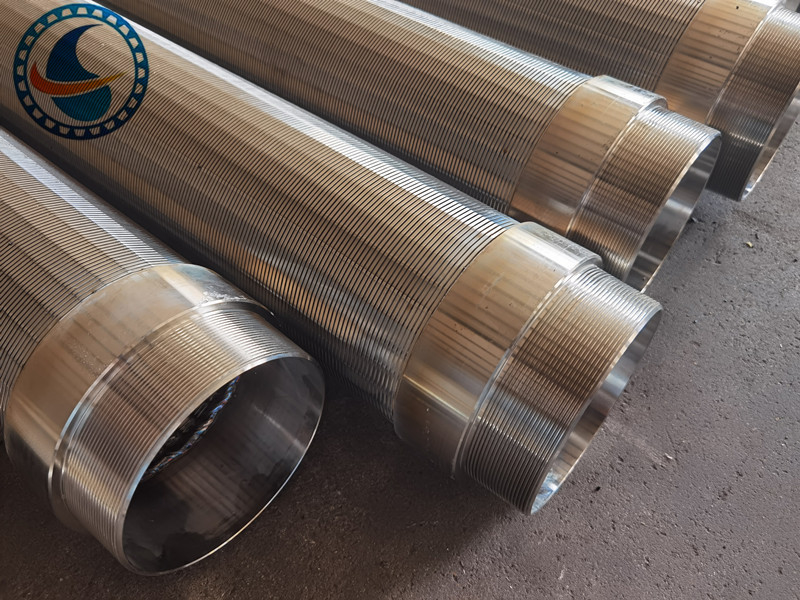

| End connection | Male/female threaded |
| Weight | 90KG/piece |

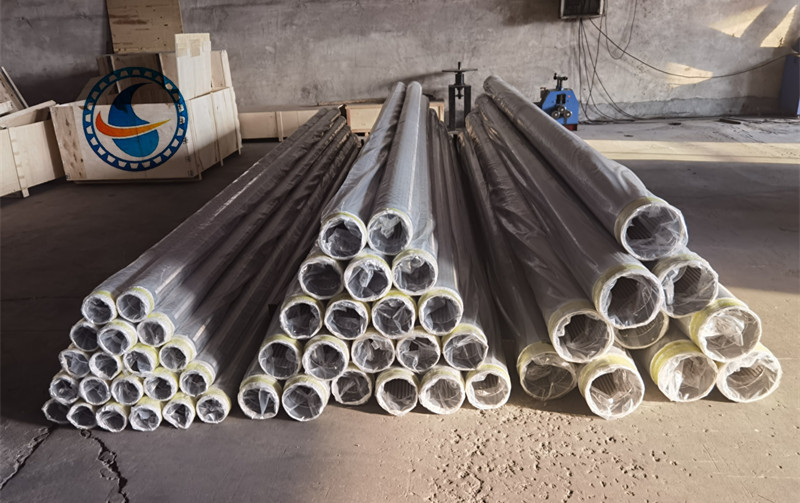

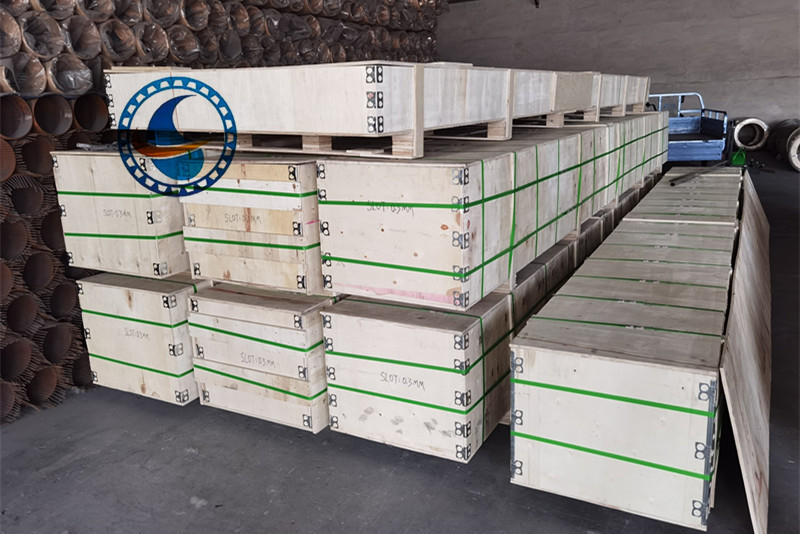

| Package | Plastic film |
| Use | In water wells for sand control |
Our Johnson VEE-WIRE Water Well Screen Pipe, also known as wedge wire screens or continuous slot water well screens, represents the pinnacle of quality in sand control solutions. Manufactured in our state-of-the-art facility, these screens combine precision engineering with durable non-magnetic stainless steel construction.
| Name | Johnson VEE-WIRE Water Well Screen Pipe, Continuous Slot Water Well Screen, Oil Well Sand Screen, Wedge Wire Screen |
|---|---|
| Material | Stainless steel 202, 304, 304L, 316L, Non-magnetic Stainless steel, Low carbon galvanized |
| Diameter | 3", 4", 6", 8", 10", 12", 14", 16", 18" (custom sizes available) |
| Slot Size | 0.1-100mm (standard sizes: 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm) |
| Length | 100-6000mm (standard lengths: 2.9m/3m and 5.8m/6m for container shipping) |
| Wrap Wire | 2×3.5mm, 2.2×3.5mm, 3×4.6mm, 3×5mm, 3×6mm, 3×6.5mm, 3.2×6mm, 4×7mm |
| Support Rod | ø3.0-ø6.0mm round wire or Vee-shaped wire options |
| End Connections | Welded rings, Plain beveled ends, Male/female threaded, Flange |
