สถานที่กำเนิด:
เมืองเหิงสุ่ย มณฑลเหอเป่ย ประเทศจีน
ชื่อแบรนด์:
HengYuan
ได้รับการรับรอง:
ISO,CO,FORM E,CIQ, etc
หมายเลขรุ่น:
HY070201
ติดต่อเรา

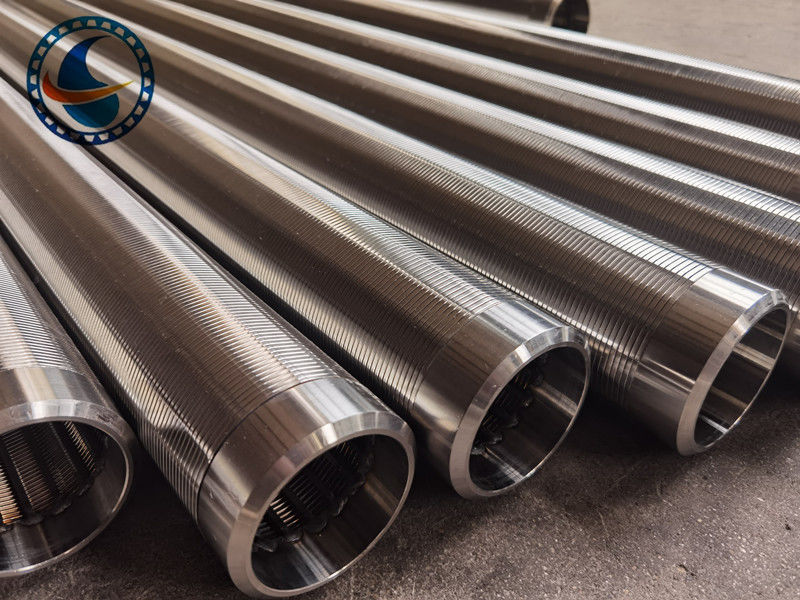

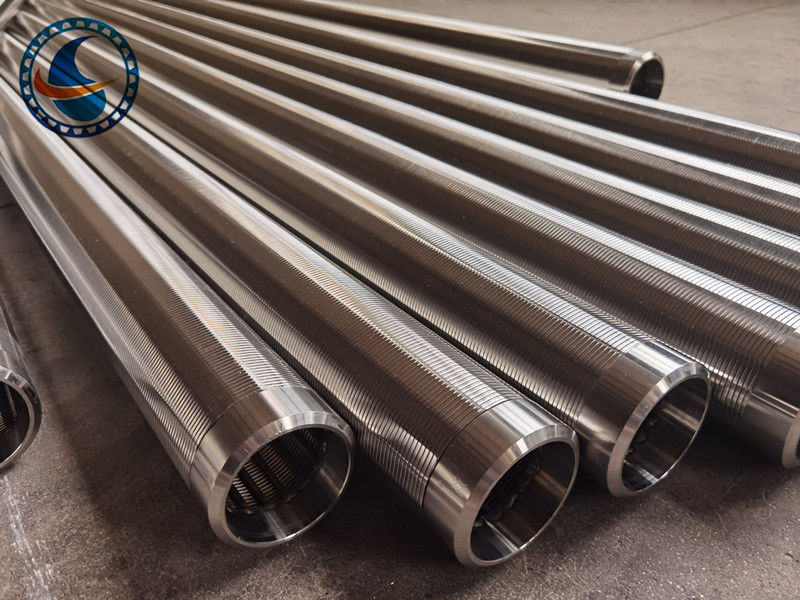

Continuous Slot wedge wire screen cylinder, also be named wedge wire screen, wedge wire screen pipe, Johnson screen, water well screen, water wire screen, wound screen, screen filter.
We design, manufacture and market a wide variety of wedge wire screens for industrial applications. The basic constructions are cylindrical screens (tubes) made of metal (usually stainless steel) or looped panels made of metal (usually stainless steel). The screens are used for various applications including flow distribution and carbon retention. They are often used with our other products like underdrains and intake screens.
Please contact us to discuss your specific interests or requirements.
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc.
Diameter : 25-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm
End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
|
Name:Wedge Wire Screen Cylinders,Johnson screen,Water wire screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Rotary filter drum. |
| Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc. |
| Diameter: From 25-1300mm |
| Slot: From 0.025-100mm |
| Length: From 100-6000mm |
| Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc. |
| Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc. |
|
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens, Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
